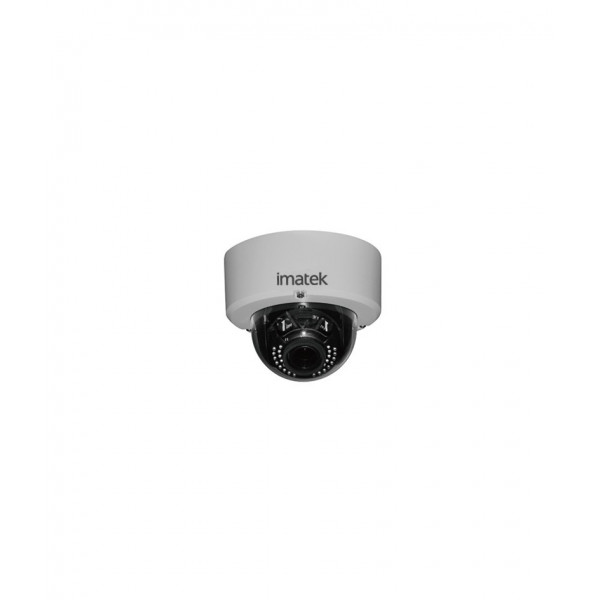

Référence: KNC-VDR25Z62/P
1/2.8" progressive scanning CMOS sensor.
Adopt advanced H.265/H.264 video encoding standard, high compression ratio and excellent image quality with low bandwidth.
Maximum outputing resolution: 1920 x 1080@25fps/30fps.
Support Tri-Stream technology. 2D/3D DNR, DWDR, defog function.
| Sensor | 1/2.8" 2.0Mega progressive scan CMOS |
| Min.illumination | 0.01Lux/F1.2; 0Lux/F1.2(IR ON) |
| Lens | 2.8-12mm Vari-focusing lens |
| IR distance | 30M |
| Electronic shutter | Auto(1/25s-1/10000s Adjustable) |
| Day/Night | Auto/Color / B&W (IR_CUT) |
| Noise Reduction | 2D/3D Digital Noise Reduction |
| WDR | Digital WDR |
| Image Adjustment | Sharpness,Brightness,Saturation,Contrast Adjustable |
| Video Encoding | H.264, H.265 |
| Encoding Type | H.265:MainProfile; H.264:High Profile/Main Profile/BaseLine Profile |
| Record Resolution | Main Stream: 1920*1080@25fps/30fps; Sub Stream: 704*576@25fps; Third Stream:1280*720@25fps |
| Video Bitrate Control | Support VBR/CBR |
| Video Bitrate Range | 32Kbps ~ 8Mbps |
| Reset Button | Built-in reset button |
| Network Interface | RJ45 10M/100M adaptive Ethernet interface |
| Motion Detection | Multiple detection zones, variable sensitivity levels |
| Privacy Masking | Four zones for privacy masking |
| Snapshot | JPEG capture,capture resolution is the max coding resolution |
| Security Features | Support password protection, watermarking features |
| Text Overlay | Support (Channel name and time title) |
| Alarm | Support network anomaly,mask alarm and etc. |
| Intelligent Function | Support line-crossing detection |
| Mobile APP. | IOS, Andriod |
| Network Function | TCP/IP_UDP_HTTP_IGMP _ICMP_DHCP_RTP/RTSP_DNS_DDNS_FTP_NTP_PPPOE_UPNP_SMTP_SNMP. |
| Protocol | Support ONVIF and CGI protocol |
| Protection Grade | IP66_IK10 |
| PoE | Support |
| Power | DC 12V |
| Operation Temperature | -10_ ~ +60_ |
| Operation humidity | 10_--90_ |
| Power supply | 8W MAX |

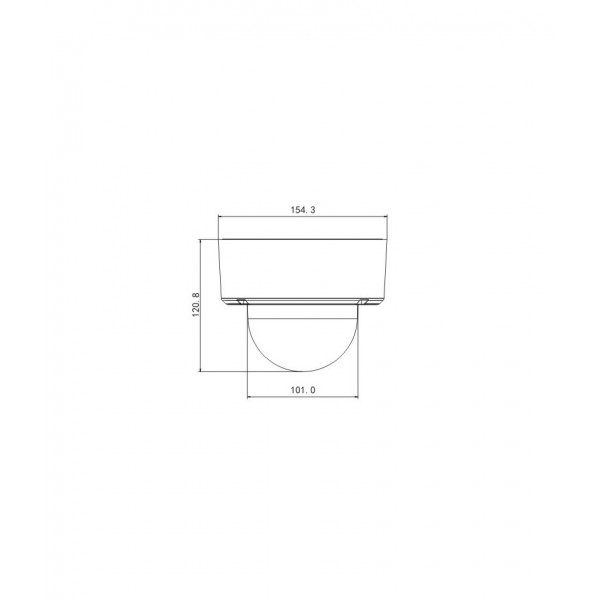

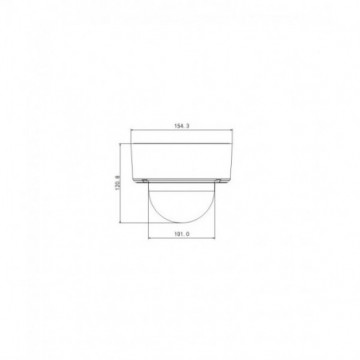

| Dimensions | 154.3mm*120.8mm |
| Weight | 1150g |
Fiche technique
1/2.8" progressive scanning CMOS sensor.
Adopt advanced H.265/H.264 video encoding standard, high compression ratio and excellent image quality with low bandwidth.
Maximum outputing resolution: 1920 x 1080@25fps/30fps.
Support Tri-Stream technology. 2D/3D DNR, DWDR, defog function.
