Caractéristiques Techniques:



Processeur
  • Supports 10th Gen Intel® Core Processors, 11th Gen Intel® Core Processors, Pentium® Gold and Celeron® Processors 1
  • Processor socket LGA1200
  1. Please go to intel.com for compatibility information.

See supported processors

Chipset Intel® Z590 Chipset
Mémoire
  • 4x DDR4 memory slots, support up to 128GB1
  • Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)
  • Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)
  • Max overclocking frequency:
    • 1DPC 1R Max speed up to 5333 MHz
    • 1DPC 2R Max speed up to 4700+ MHz
    • 2DPC 1R Max speed up to 4400+ MHz
    • 2DPC 2R Max speed up to 4000+ MHz
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
  • Supports Intel® Extreme Memory Profile (XMP)
  1. Please refer to www.msi.com for more information on compatible memory

See supported memory

Expansion Slots
  • 3x PCIe x16 slots
    • Support x16/x0/x4, x8/x8/x4, x8/x4+x4/x4
    • PCI_E1 & PCI_E3 slots (From CPU)
      • Support PCIe 4.0 for 11th Gen Intel® CPU
      • Support PCIe 3.0 for 10th Gen Intel® CPU
    • PCI_E5 slot (From Z590 Chipset)
      • Supports PCIe 3.0
  • 2x PCIe 3.0 x1 slots (From Z590 Chipset)
Onboard Graphics
  • 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz1/ 2
  • 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz1/ 2
  1. Available only on processors featuring integrated graphics.
  2. Graphics specifications may vary depending on the CPU installed.
Multi-GPU
  • Supports 3-Way AMD® CrossFire Technology
Storage
  • 6x SATA 6Gb/s ports (From Z590 Chipset)
  • 3x M.2 slots (Key M)
    • M2_1 slot (From CPU)
      • Available only on 11th Gen Intel® CPU
      • Supports PCIe 4.0 x4
      • Supports 2242/ 2260/ 2280/ 22110 storage devices
    • M2_21 & M2_32 slot (From Z590 Chipset)
      • Supports PCIe 3.0 x4
      • Supports SATA 6Gb/s
      • Supports 2242/ 2260/ 2280 storage devices
      • Intel® Optane™ Memory Ready3
  • Supports Intel® Smart Response Technology for Intel Core processors
  1. SATA2 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
  2. SATA5 & SATA6 will be unavailable when installing M.2 SATA/PCIe SSD in the M2_3 slot.
  3. Before using Intel® Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
RAID
  • Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
  • Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB Intel® Z590 Chipset
  • 1x USB3.2 Gen2x2 20Gbps port (Type-C port on the back panel)
  • 4x USB 3.2 Gen 2 10Gbps ports (3 Type-A port on the back panel, 1 Type-C available through the internal connector)
  • 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 Type-A ports available through the internal connector)
Hub-GL850G
  • 8x USB 2.0 ports (4 Type-A ports on the back panel, 4 Type-A ports available through internal connectors)
Audio Realtek® ALC4080 Codec
  • 7.1-Channel High Definition Audio
LAN
  • 1x Intel® I225V 2.5Gbps LAN controller
Internal connectors
  • 1x 24-pin ATX main power connector
  • 2x 8-pin ATX 12V power connectors
  • 1x 6-pin PCIE power connector
  • 6x SATA 6Gb/s connectors
  • 3x M.2 slots (M-Key)
  • 1x USB 3.2 Gen 2 10Gbps Type-C port
  • 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
  • 2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin water-pump fan connector
  • 6x 4-pin system fan connectors
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Chassis Intrusion connector
  • 1x Clear CMOS jumper
  • 1x TPM module connector
  • 1x TBT connector (supports RTD3)
  • 1x Tuning Controller connector

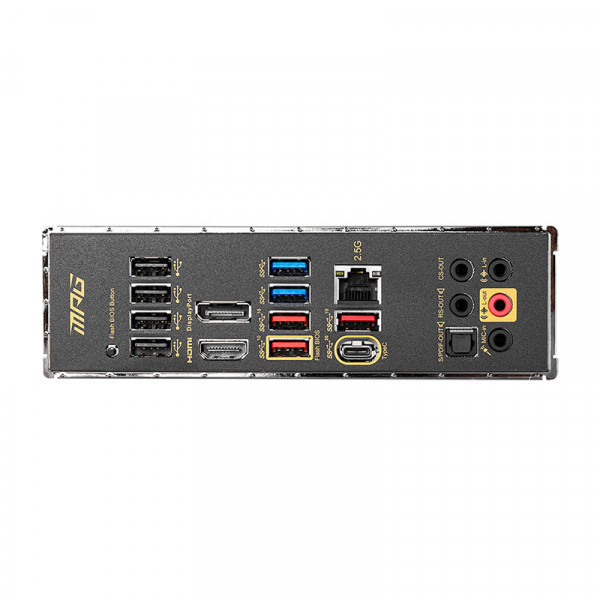

Ports du panneau arrière
  1. USB 2.0
  2. DisplayPort
  3. USB 3.2 Gen 1 5Gbps Type-A
  4. 2.5G LAN
  5. Audio Connectors
  6. Flash BIOS Button
  7. HDMI
  8. USB 3.2 Gen 2 10Gbps Type-A
  9. USB 3.2 Gen 2x2 20Gbps Type-C
  10. Optical S/PDIF Out
Dimensions
  • ATX Form Factor
  • 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
Mounting 9 mounting holes
Système d'Exploitation
  • Support for Windows® 10 64-bit

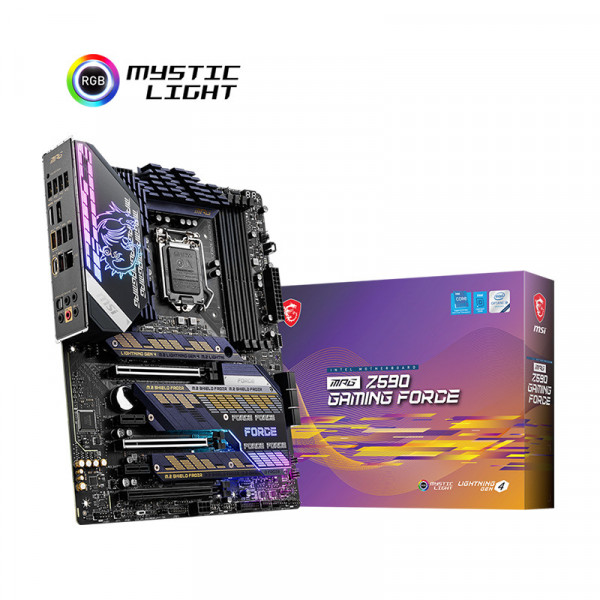

Box content
  1. MSI® does not guarantee the risks or damages caused by changing the cover.
  2. These pictures are for reference only and may vary without notice.
MPG Z590 GAMING FORCE

Fiche technique

Type de produits
Carte mère
Réf
MPG Z590 GAMING FORCE
Socket
Intel® LGA1200
Format
ATX
Type de mémoire
DDR4
